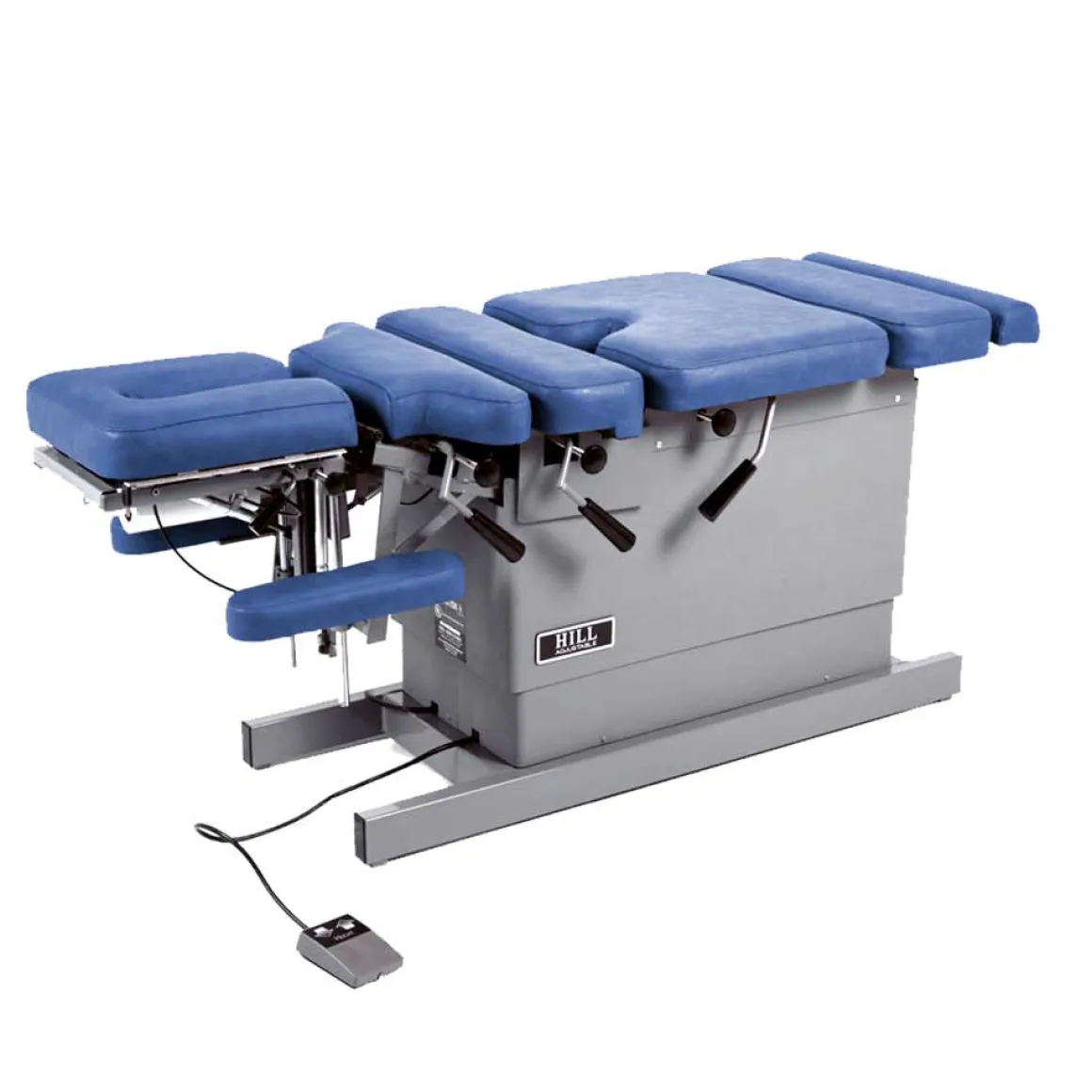

Hill Laboratories Air Drop HA90C Chiropractic Table (Base Model Only)

The Hill Laboratories Air Drop HA90C Chiropractic Table is equipped with the Hill Air-Drop System, the HA90C allows doctors to select one or up to four drops simultaneously from the convenient, side-mounted, control panel. Once a section has been dropped, it is instantly reset with the simple touch of a foot pedal.

All of the pneumatic components on the Air-Drop HA90C are supplied by a large air-storage tank and mini-compressor which are neatly enclosed within the table’s base skirting. The compressor runs quietly and only periodically (approximately 1 minute) to replenish the air-tank.

The table features a Thoracic Air-Breakaway Section controlled by a foot pedal. The pedal increases or decreases the air-spring pressure in the thoracic and lumbar sections providing a controlled recoil action. It can also be locked in any position down to 51/2” for treating patients with a large abdominal region.

The drops included on the Air-Drop HA90C are Cervical, Thoracic, Lumbar, and Pelvic. The Cervical Drop has dual action enabling either straight or forward-drop action. All drops are controlled by the included foot-strips located on both sides of the table.

Like all Hill Adjustables, the Air-Drop HA90C has electric adjustable-height. Height is adjusted with a rocker foot pedal that is mounted to the base and can be accessed from either side of the table. A standard operating range from 21.5″ to 31″(see optional ranges below) allows the doctor to work at a comfortable treatment level.

Base Air Drop HA90C Standard Features


• Height controlled by Rocker Foot Pedal
• Height Range Standard: 21.5″ to 31″ (see options below)
• Width 24″, Length 6’3″
• Armrests, 13″ Face cutout, Paper Roll, Cutter
• Air-Powered Thoracic Spring Breakaway
• Air-activated Cervical, Thoracic, Lumbar and Pelvic drops
• Tilting Headpiece, 30° Positive and Negative Tilt
• Power Foot-Strips (activate drops)
• Drop-Away Foot Section
• Choice of 20 vinyl colors for the top
• Beige, Grey or Black thermo-plastic base cover with Microban Antimicrobial Protection
• One-year warranty on all parts (Dealer on-site labor warranty may vary)

Options (extra cost):

Please call for further information and pricing.

Head Section (extra cost)

• F14S Manual Cervical Drop Substitute
• AD301 Raised Headpiece
• AD302 CBP Headpiece
• F22 Flexion Headpiece
• 84F Sliding Axial Motion

Thoracic / Lumbar Section (extra cost)

• AD303 Raised Pelvic Section
• 86C Male Notch in Pelvic Drop

Foot Section (extra cost)

• AD87A Slide-Out u0026amp; Raised Ankle

Arm Rests (extra cost)

• 77 Adjustable Armrests

Foot u0026amp; Hand Controls (extra cost)

• AD305 Extra Control Box
• 92-AH Extra Foot Pedal for Air-control at the Head-end
• 92-AF Extra Foot Pedal for Air-control at the Foot-end
• 92-HH Extra Foot Pedal for Height-control at the Head-end
• 92-HF Extra Foot Pedal for Height-control at the Foot-end
• 92B Auto-Touch Foot Pedal
• 92D Toggle Height Switch
• 93 Caster System for mobility
• 220 Volt International Power Supply

Width, Height and Upholstery (extra cost)

• 78D92C 2″ Base Extension Legs
• 78E92C 3″ Base Extension Legs
• AD304 27″ width (not recommended for doctors under 6 feet tall or with limited reach)
• 80 Removable width extensions
• 140 Finesse Tricot Material
• 136 Hill Upholstery Cleaner / 4 Pack-22oz Bottles.
• 137 Disinfectant Spray / 4 Pack-12oz Bottles.

Matching Exam Stools (extra cost)

• 150 Gas-powered Stool
• 151 Gas-powered Stool with back
